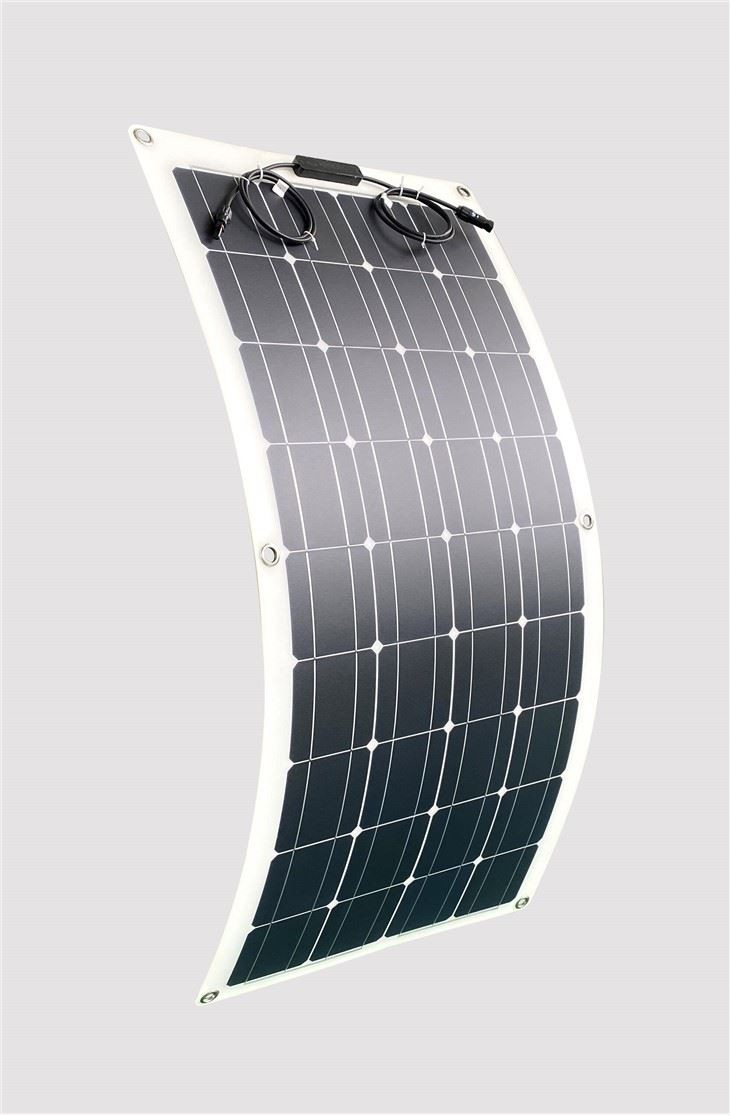

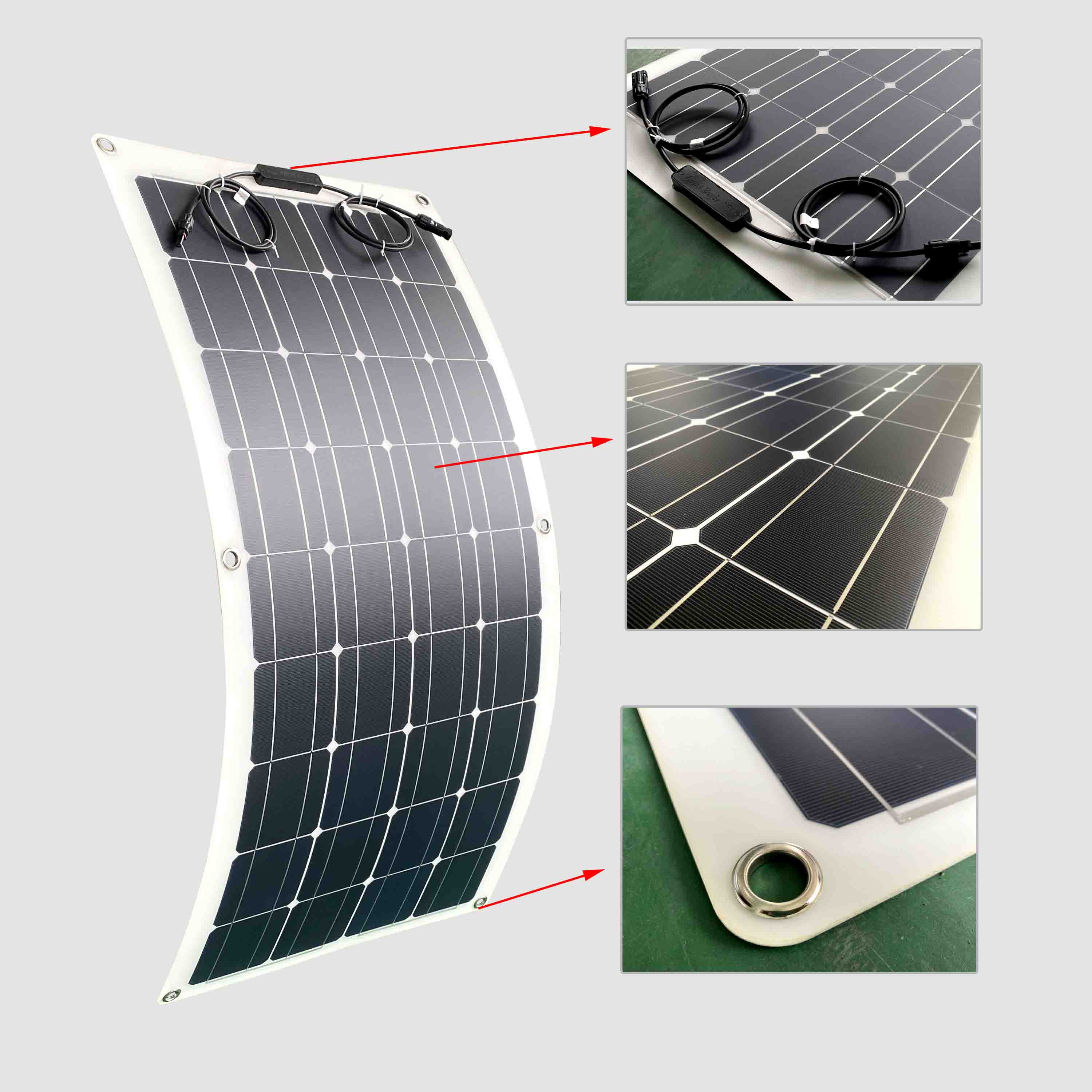

Khoom Piav Qhia
ETFE Multilayer Zaj Duab Xis:
Lub teeb ci, yooj yim los ntxuav,
Corrosion thiab Laus Kuj
Honeycomb Qauv Tsim Qauv nce ntxiv cov concentration ntawm lub teeb, nce cov phibe kev hloov pauv hloov los ntawm 5%
|
|
|
|
Kev qhia tshwj xeeb
|
Neeg Kho Tshuab |
|
|
Hnub ci hlwb |
32 (4 × 8) USA SUNPower SYAL Cell 125 × 125mm |
|
Encapsulant |
Tus lwm yam |
|
Encapsulant |
Eva (Ethylene-Vinyl acetate) |
|
Encapsulant |
Xuas |
|
Lub thawv hlws ris |
IP67 ntsuas, nrog kev pabcuam bypibe muaj bypass diodes |
|
Fab |
UV REIGTANT HNUB CI CABLE 4 MM2 (YOOJ YIM) |
|
Tus sib txuas |
MC4 cov txuas (yeem) |
|
Qhov loj me (L × w × h) |
1143 × 540 × 21mm |
|
Qho hnyav |
1.8kg |
|
Max.load |
Cua Load: 1200pa \/ daus load: 2700PA |
|
Cov yam ntxwv hluav taws xob (STC *) |
|||
|
Qauv NO. (SFP) |
100W |
105W |
110W |
|
Lub zog siab tshaj ntawm STC (PMAX) |
100W |
105W |
110W |
|
Qhov siab tshaj plaws hluav taws xob voltage (VMP) |
19.20V |
19.52V |
19.82V |
|
Lub zog siab tshaj plaws tam sim no (Imp) |
5.21A |
5.38A |
5.55A |
|
Qhib Lub Valftion Voltage (VOC) |
23.04V |
23.42V |
23.78V |
|
Circuit Court Tam Sim No (ISC) |
5.68A |
5.86A |
6.05A |
|
Qhov siab tshaj plaws hluav taws xob (v) |
500v DC (IEC) |
||
|
Qhov siab tshaj plaws series fuse (a) |
15A |
||
|
Lub zog tiv thaiv (%) |
0-+3% |
||
|
Noct |
45 ± 2 degree |
||
|
Pmax kub coefficient |
{{0 {}}. 46% \/ degree |
||
|
Voc Kub Coefficient |
-0. 346% \/ degree |
||
|
ISC kub coefficient |
{{0 {}}. 065% \/ degree |
||
|
Kev khiav hauj lwm kub |
{{0 {}} ~ {+85 degree |
||
|
* STC (qauv ntsuas mob): irradiance 1000W \/ M2, Module kub 25 degree, AM1.5 |
|||
|
Qhov zoo tshaj plaws hauv chav kawm AAA Hnub ci Simulator (iec 60904-9}}) yog siv, nrog ntsuas hluav taws xob tsis zoo nyob rau hauv ± 3% |
|||
