Khoom Piav Qhia
Lub thawv hlws ris no siv rau lub hnub ci ntsa iab no, nrog kev tiv thaiv Diode, kom tiv thaiv rov qab cov khoom siv rov qab, ua los ntawm ib puag ncig cov khoom, muaj txiaj ntsig zoo thiab cov nqi sib tw.
Peb lub Hoobkas loj hauv Hnub Ci Kev sib tshuam lub thawv, nrog ntau hom, thov qhia kuv qhov koj xav tau, Kuv yuav pab koj xaiv qhov yog.
Chaw ua uas tsis tau haus
| Kev qhia tshwj xeeb | No. ntawm Terminal | No. ntawm Diode | Diode hom | Kev ncua deb ntawm cov terminals | Txoj kev ib ncig ib qho chaw |
| PV-sc 1502-43 | 4 | 3 | Sda2040 | 20mm |
|
|
Daim ntawv muaj cai |
Tul |
|
Lub hom phiaj |
En 50548: 2011+ A1 |
|
Cov Ntsuas Hluav Taws Xob |
100VDC |
|
Max.Working Voltage |
100VDC |
|
Rated tam sim no |
12A |
|
Degion degree |
0 |
|
Kev Tiv Thaiv Clasee |
Clasee ⅱ |
|
Kev tiv thaiv degree |
Ms67 |
|
Nplaim taws |
Ul {{0}} v0 |
|
Tempersture ntau yam |
{{0 {}} degree -+85 degree |
|
Txuas Txuas Cable |
1×4m㎡ |
|
Cov qauv dej tsis muaj dej |
Kua nplaum nplaum lauj kaubting Foob |
|
Dav ntawm tooj liab ribbon |
Txog 8 hli |
|
Txoj kev sib txuas |
Soldering |
|
Rwb thaiv tsev ntaub |
Nyiaj tso |
|
Cov Khoom Sib Hu |
Tooj liab alloy, tin plated |
|
Zuag Tawm Ib Zos |
95.4 × 75 15 hli |
|
Tsevneeg Kho |
Silica Gel |
|
Txoj kev sib raug zoo |
2500m㎡ |
|
Tus txuas |
PV-Sc01 |

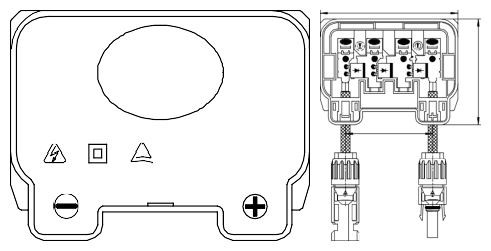

Daim duab
Yam zoo
1. Lub thawv tso zis tso zis ci ntsa iab tau txuas rau sab nraum qab ntawm lub ntiaj teb vaj huam sib luag nrog silicon adhesive
2. Nws cov xov hlau (feem ntau) 2 lub txuas ua ke thiab yog cov zis interface ntawm lub vaj huam sib luag
3. Nrog kev siv ntawm lub thawv hloog, nws ua tau yooj yim txuas lub hnub ci kom array
4. Nrog lub peev xwm tiv thaiv kev laus thiab tsis kam mus rau ultraviolet hluav taws xob ntawm sab nraud npog
5. Txhawm rau kom tau raws li qhov yuav tsum tau ua raws li kev mob sab nraum zoov tsis zoo
6. Kev ntsuas phoo ua haujlwm ua rau hom kev sib txuas yog yooj yim dua thiab ruaj
7. Anti Fais Fais Fab Rwb thaiv kev Rwb thaiv kev tiv thaiv kev tshawb fawb, muaj kev ruaj ntseg zoo
8. Ntawv pov thawj: Tuv Kev Nyab Xeeb Chav Kawm: Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv Kev: IP67

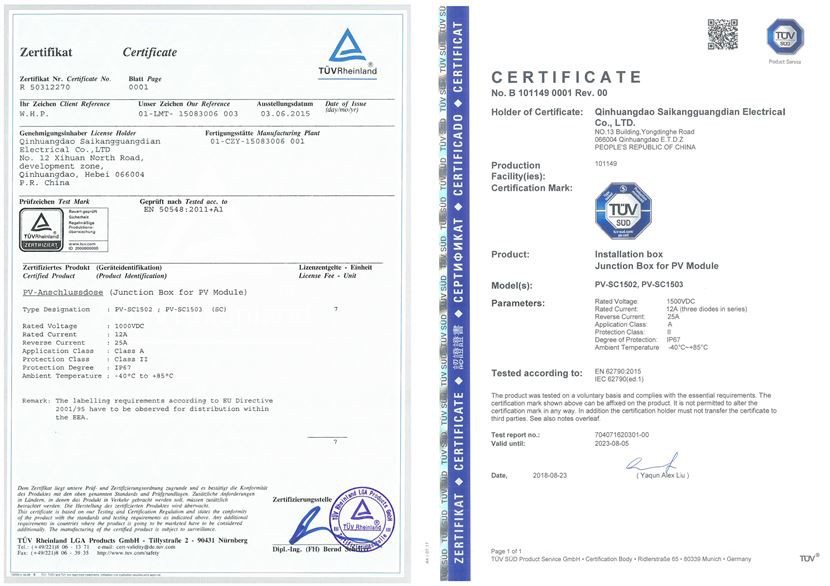

Daim ntawv muaj cai
Vim li cas thiaj xaiv peb?
1: Koj puas yog cov tuam txhab tsim lossis lag luam?
Peb yog cov kws tshaj lij thiab kev paub txog lub khw tshaj lij rau ntau dua 12 xyoos thiab rub lub hnub ci txuas rau ntau xyoo, tuaj yeem muab koj qhov zoo tshaj plaws thiab kev pabcuam.
2: Kuv puas tuaj yeem muaj cov qauv?
Yog lawm, tau kawg.
3: Koj MOQ yog dab tsi?
Feem ntau, peb tsim qee cov hauv Tshuag, yog li moq yog ib qho ntau.
4: Thaum twg koj lub sijhawm khoom xa tuaj?
Feem ntau, nyob rau hauv 3 hnub tom qab kev txiav txim paub tseeb.
5: Koj cov nqe lus them nqi dab tsi?
T/T.
6. Koj puas muaj cov khoom lag luam muag khoom muag?
Yog lawm, peb muaj qee cov khoom lag luam txhua lub sijhawm.
