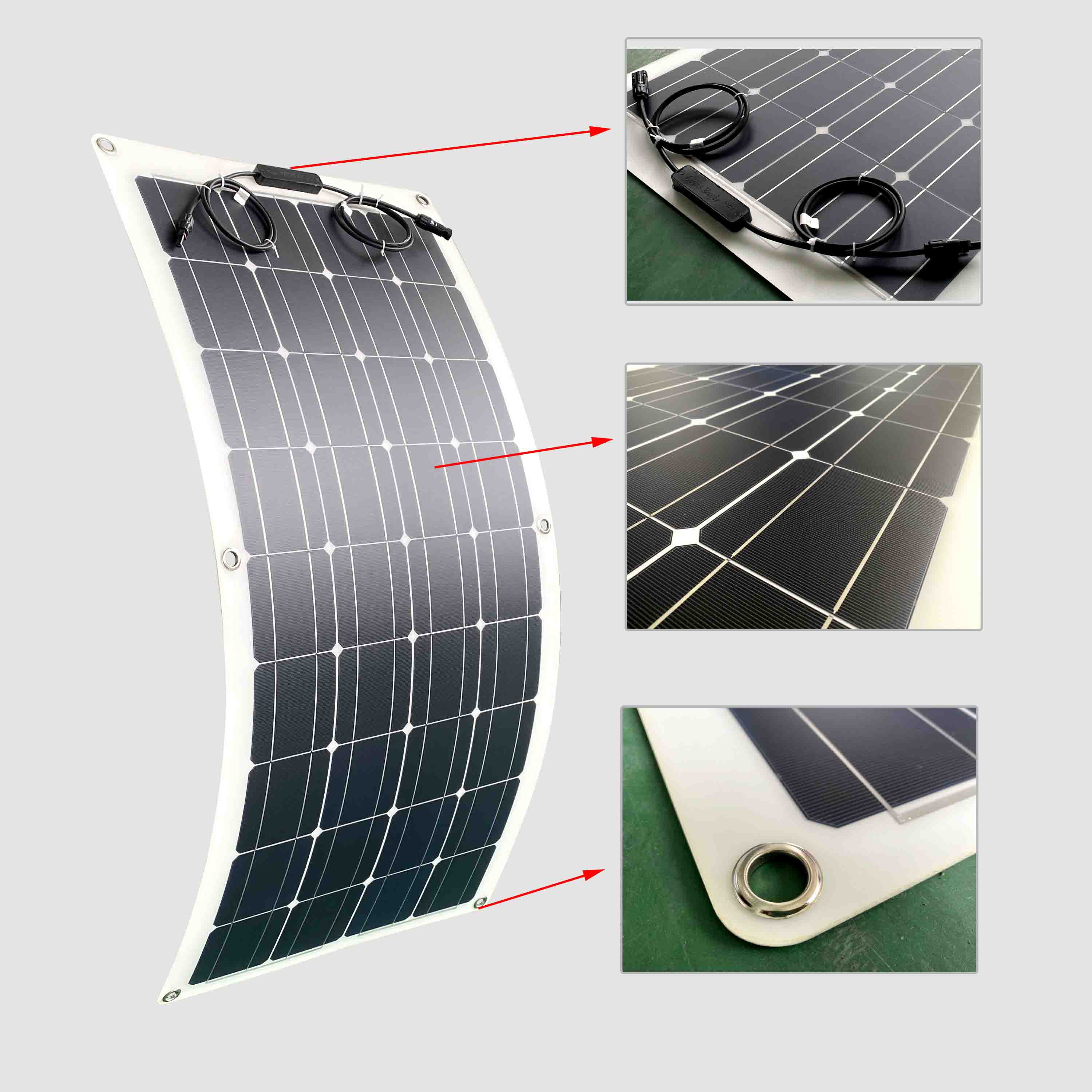

150W Mono Saj Zawg Zog Lub Vaj Huam Sib Luag

Siab temp kuj thiab me ntsis fais fab poob
Cov khoom siv saum npoo tiv thaiv kev kub kub
Nruj, nyias, lub teeb tsim rau siv dav
Nws yog rigid kom tiv thaiv hailstone, semi hloov tau nrog khoov kaum sab xis tsawg retardancy ul94 vtm -0. Rugged thiab insulated hauv qab thaj chaw kov nto si ntawm yacht, RV, lub tawb nqa khoom, nws txias vaj huam sib luag thiab tau txais lub zog hnyav. 5 DEGREE, Haum rau kev siv phiaj xwm tawm, marine, yacht, ongrid lub tsev system, chaw nres tsheb, portable fais fab hluav taws xob thiab lwm yam.

Xa kev nug

Ces

Tsis

Cov yam ntxwv hluav taws xob (STC *)
Qauv NO. (SFP)	100W	105W	110W
Lub zog siab tshaj ntawm STC (PMAX)	100W	105W	110W
Qhov siab tshaj plaws hluav taws xob voltage (VMP)	19.20V	19.52V	19.82V
Lub zog siab tshaj plaws tam sim no (Imp)	5.21A	5.38A	5.55A
Qhib Lub Valftion Voltage (VOC)	23.04V	23.42V	23.78V
Circuit Court Tam Sim No (ISC)	5.68A	5.86A	6.05A
Qhov siab tshaj plaws hluav taws xob (v)	500v DC (IEC)
Qhov siab tshaj plaws series fuse (a)	15A
Lub zog tiv thaiv (%)	0-+3%
Noct	45 ± 2 degree
Pmax kub coefficient	{{0 {}}. 46% \/ degree
Voc Kub Coefficient	-0. 346% \/ degree
ISC kub coefficient	{{0 {}}. 065% \/ degree
Kev khiav hauj lwm kub	{{0 {}} ~ {+85 degree
* STC (qauv ntsuas mob): irradiance 1000W \/ M2, Module kub 25 degree, AM1.5
Qhov zoo tshaj plaws hauv chav kawm AAA Hnub ci Simulator (iec 60904-9}}) yog siv, nrog ntsuas hluav taws xob tsis zoo nyob rau hauv ± 3%

01+

Cim npe nrov: 150T Mono Saj zawg zog hnub Solar, cov chaw muag khoom, chaw tsim khoom, Hoobkas, lag luam, yuav, tus nqi, zoo tshaj plaws, kev muag khoom
