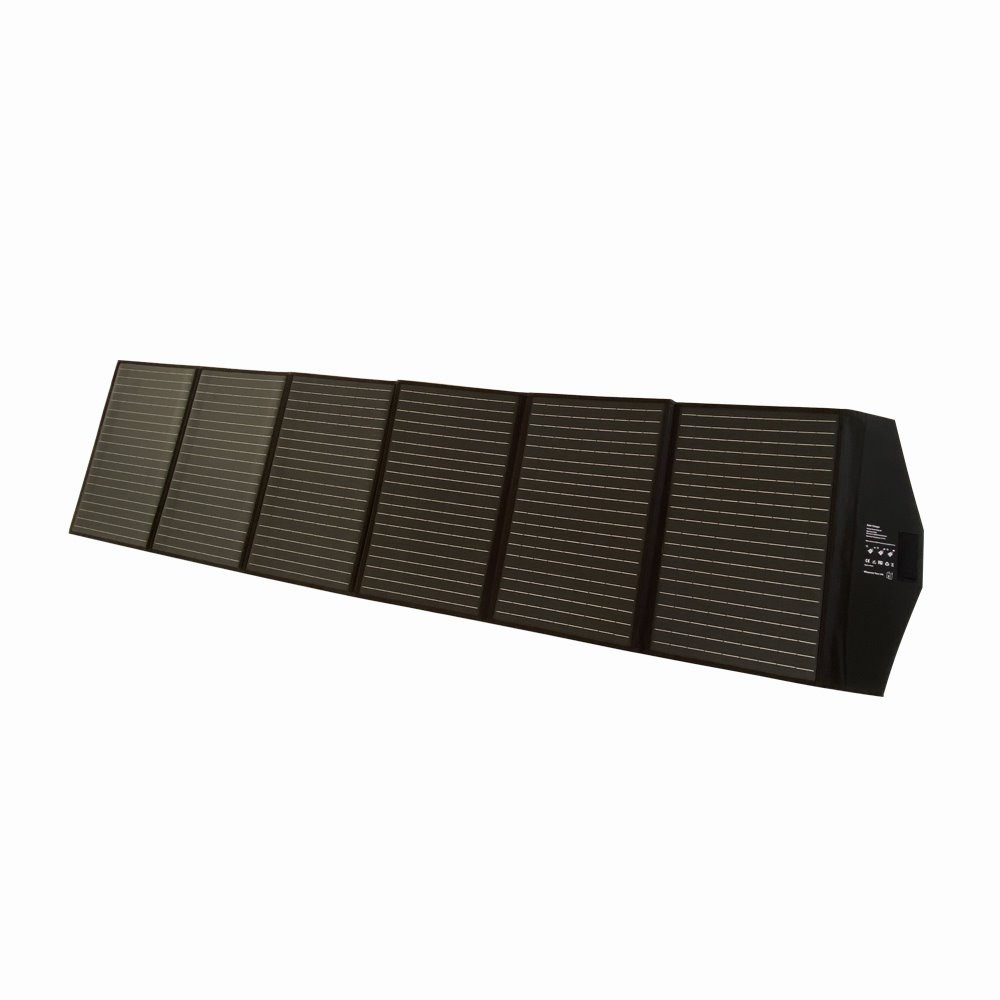

300 Watt Folding Hnub Ci Vaj Huam Sib Luag
Tsav los ntawm kev xav tau ntawm kev mus pw hav zoov kev lom zem thiab kev puas tsuaj npaj, khoom siv sab nraum zoov thiab hnub ci them vaj huam sib luag yog qhov tseem ceeb. Kev sib xyaw ntawm cov hnab nyiaj hnub ci lub zog thiab sab nraum zoov cov hluav taws xob tuaj yeem tsim hluav taws xob kom ntev li ntev tau muaj tshav ntuj hnub ci, tso lub hauv paus rau tus kheej kom txaus.

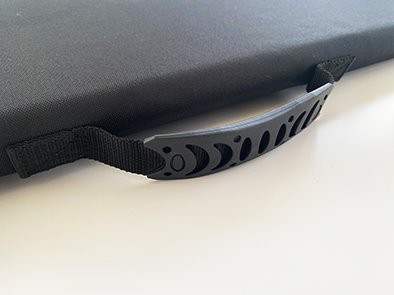

Pawg vaj huam sib luag yog muab tso rau hauv txoj kev foldable, nrog ib qho chaw seem, nrog ib qho chaw seem, nrog rau lub hnab ntim khoom nyob sab nraum qab, thiab cov pas nrig sib pab. Tom qab tus pas nrig txhawb nqa yog rub tawm, lub inclination kaum tau tuaj yeem hloov kho raws li txoj haujlwm tshav ntuj tam sim no, kom lub zog hloov dua siab tshiab tuaj yeem txhim kho ntxiv.
|
|
|
|
|
|
|
|
Kev qhia tshwj xeeb
Peak Power (PMAX): 300WP
Ua haujlwm voltage (VMP): 18V
Ua Haujlwm Tam Sim No (Imp): 16.67a
Qhib Circuit Court: VOC): 21.6V
Circuit Court Tam Sim No (ISC): 18.33A
Cell: Mono 156
Kev Ua Haujlwm Kub: {{-40 degree ~ +70 degree
Tawm: Cable PV 1- f1 * 4mm2 * 2 lossis MC4
Loj me me: 674 * 403 * 45 hli
Expand Loj: 2750 * 674 * 5 hli
Ib Tug Neeg Ntim Loj: 700 * 445 * 65mm
Ceeb toom hnyav: 8.4kg
Tag nrho qhov hnyav: 8.7kg
Carton Loj: 715 * 215 * 465mm
Qty \/ Carton: 3 pcs
Phaus ib lub thawv: 27.6kg
Cov Ntsiab Lus Pob: Kev Siv Tawm Tawm Cable, Phau Ntawv
